Quadra-Fire Pioneer III Wood Fireplace
$6,279.00

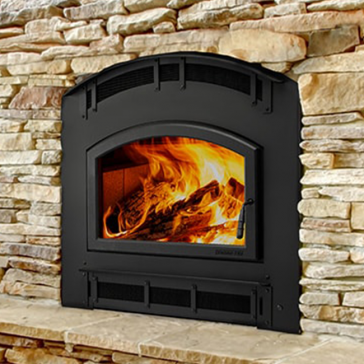

The Pioneer III is the largest and most powerful wood fireplace produced by Quadra-Fire. Powered by the Quadra-Fire four-point burn system providing an impressive fire that can be easily seen through the large 341 sq.in. cast iron glass door. Along with Smart Burn Technology (SBT), which controls the amount of air coming into your fireplace. Simply push the button, set your thermostat and walk away. The Pioneer III will take care of the rest. This heating power house is available with an arch door or rectangular door and three front choices ensuring the right look for any décor.
Availability:
In stock
Only %1 left
SKU
PIONEER-III-CFG
| BTU/Hr Input | Up to 90,900 BTU/Hr |
|---|---|
| Heating Capacity | Up to 3,000 sq. ft. |
| Efficiency | 74% LHV, 69% HHV |
| Emissions | 2 g/hr |
| Burn Time | Up to 18 Hours |
| Log Length | 24" Maximum |
| Firebox Size | 4.1 cu. ft. |
| Firebox Construction | Firebrick Lined Steel |
| Clean Burn Technology | Quadra-Fire Smart Burn |
| Fan/Blower | Included |
| Zone Capability | Up to Two 6" B-Vent Ducts |
| Chimney Type | 8" SL300 Series w/ 4" CAK |
| Outside Air Vent | 6" |
| Mantel Clearance | 66" from Base (46" Non-Combustible), Max 12" Deep Mantel |
| Hearth Requirement | 20" x 42" (D x W) |
| Fireplace Dimensions | 47-1/4" H x 50-7/8" W x 23-1/2" D |
| Framing Dimensions | 63-1/4" H x 51" W x 24-1/4" D |
| Unit Weight | 680 lbs. |
| Unique Features | Heat Zone Kit Available to Heat Multiple Rooms |
| Notes | All specifications per the Manufacturer. Heating capacity and output are to be used as a guide only and cannot be accurately compared across manufacturers. Burn times will vary based on installation, how the unit is operated, load size, etc... |
Write Your Own Review
The Pioneer III is the largest and most powerful wood fireplace produced by Quadra-Fire. Powered by the Quadra-Fire four-point burn system providing an impressive fire that can be easily seen through the large 341 sq.in. cast iron glass door. Along with Smart Burn Technology (SBT), which controls the amount of air coming into your fireplace. Simply push the button, set your thermostat and walk away. The Pioneer III will take care of the rest. This heating power house is available with an arch door or rectangular door and three front choices ensuring the right look for any décor.
Features
- Heats up to 3000 sq ft with 90,900 BTU’s
- 4.1 cu ft firebox holding a 24” log
- Up to 18 hours of burn time on a full load of wood
- 400 CFM fan system delivering heat further and faster into your room
- Certified to the EPA 2020 emissions standard
Fronts & Doors

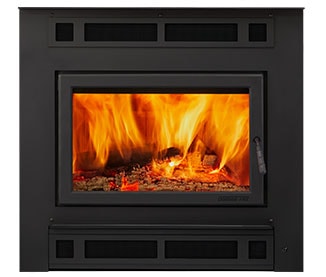

Mission Rectangular Front
Forged Arch Front

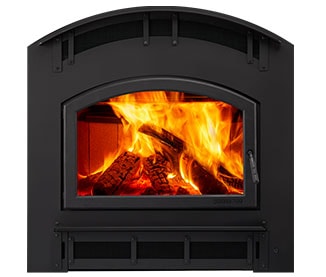

Mission Arch Front
Brochure
