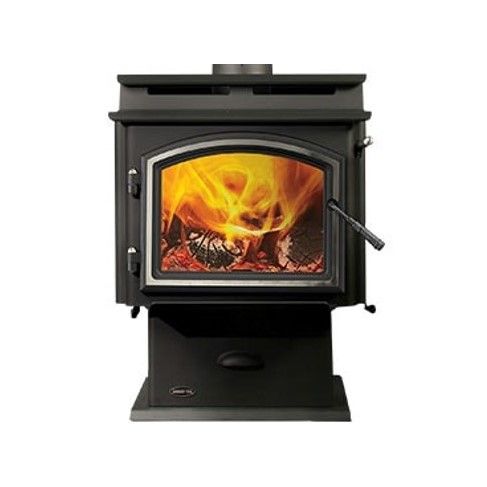

Quadra-Fire 5700 Step Top Wood Stove
$2,979.00
The 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control, and easily blends with the Quadra-Fire Four-Point combustion system. Embrace the 5700’s powerful, money-saving performance.
SKU
57ST-ACC-C
| BTU/Hr Input | Up to 72,100 BTU/Hr |
|---|---|
| Heating Capacity | Up to 3,700 sq. ft. |
| Efficiency | 80% (LHV), 74% (HHV) |
| Emissions | 1.8 g/hr |
| Burn Time | 15 Hours |
| Log Length | 22" Maximum |
| Loading Door | Front |
| Firebox Size | 3.0 cu. ft. |
| Firebox Construction | Steel w/ Firebrick |
| Clean Burn Technology | Tube Non-Catalytic |
| Fan/Blower | Optional |
| Flue Size | 6" |
| Venting Configuration | Top |
| Rear Vent Flue Height | N/A |
| Dimensions | 37-11/16" H x 27" W x 32-3/8" D |
| Unit Weight | 434 lbs. |
| Unique Features | Four-Point Burn System |
| Notes | All specifications per the Manufacturer. Heating capacity and output are to be used as a guide only and cannot be accurately compared across manufacturers. Please visit our showroom to for help determining the best product for you. |
Write Your Own Review
The 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control, and easily blends with the Quadra-Fire Four-Point combustion system. Embrace the 5700’s powerful, money-saving performance.
Features
- Heat 1,400-3,700 sq ft with 72,100 BTUs*, based on climate and home efficiency
- Low emission levels of 1.8 grams per hour, certified by the EPA
- 3.0 cu ft firebox capacity / recommended 22" log length
- Up to 15 hours of burn time from each load of fuel†
- Easy start-up
- Also available in these sizes: 4300 Step Top
Pedestal & Legs
Satin Nickel Queen Anne Legs
Black Queen Anne Legs
Pedestal Base
Cast Legs
Doors
Black Arched Door
Black Arched Door with Satin Nickel Hinge Pins & Air Control
Black Arched Door with Satin Nickel Trim
Fan Kit
Fan Kit
Brochure
