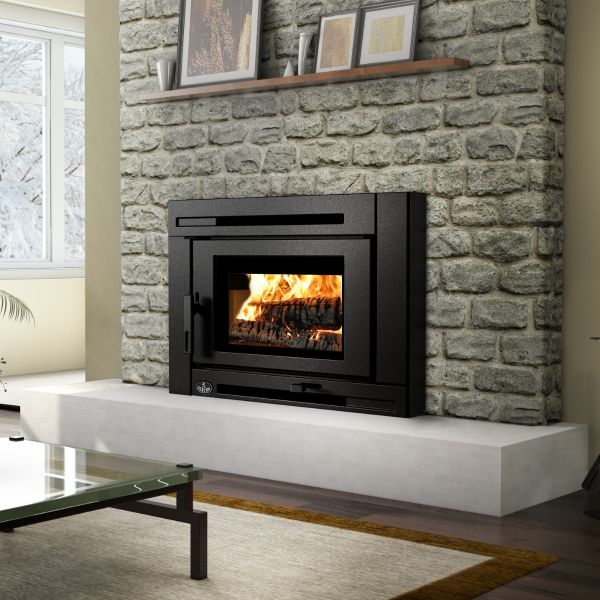

Osburn Matrix Wood Insert

$3,949.00

This updated version of the Matrix wood insert will seduce you with an average particle emission rate as low as 1.54 g/h. The latest modifications made to this box are well in tune with the industry standards required for 2020. Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.

SKU

OB02028

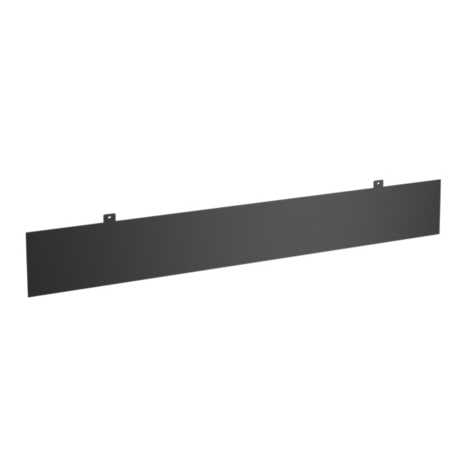

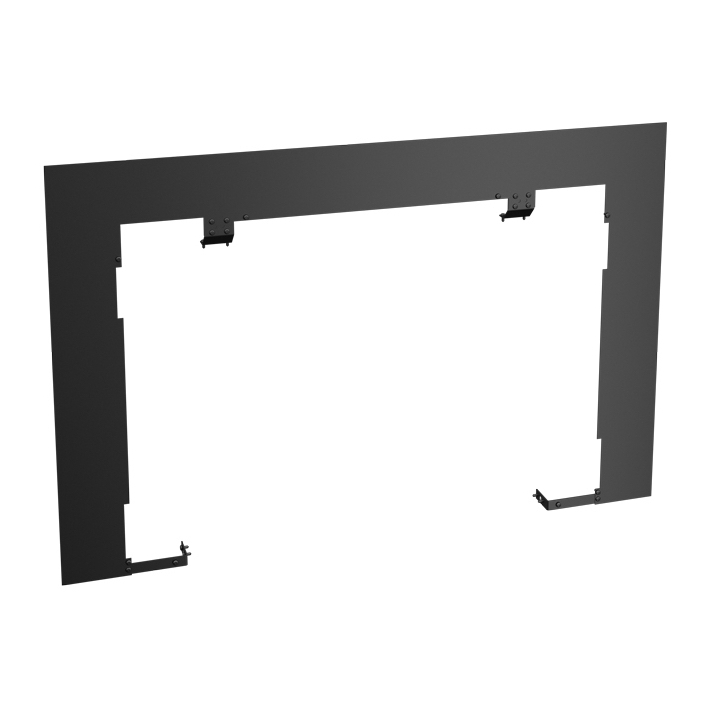

Faceplate Backings

Additional Options

Offset Liner Adapter + $295.00

Fresh Air Intake Kit + $100.00

Rigid Firescreen + $200.00

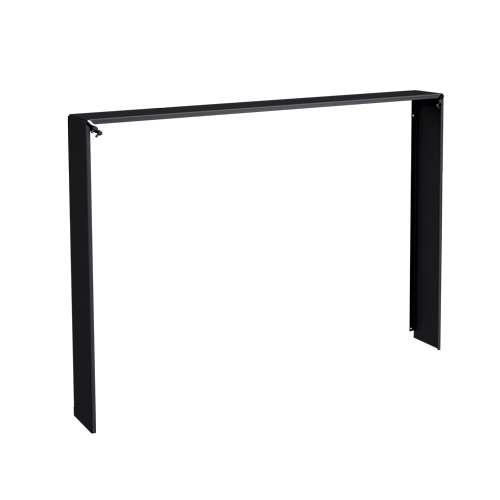

Projection Kit for Insert 2" or 4" + $130.00

Popular Venting (Call for More Options)

6" x 25' Liner Kit (Includes Cap, 13" x 13" Top Plate, 3" - 4" Adapter) - 316ti Stainless Steel + $650.00

6" x 35' Liner Kit (Includes Cap, 13" x 13" Top Plate, 3" - 4" Adapter) - 316ti Stainless Steel + $900.00

Type II Insulation Blanket 2' x 4' (Use for Damper Block-Off) + $45.00

Silicone - Clear + $11.00

Qty:

Specifications

Specifications
BTU/Hr Input	Up to 75,000 BTU/Hr
Heating Capacity	Up to 2,100 sq. ft.
Efficiency	77% (LHV), 72% (HHV)
Emissions	1.54 g/hr
Burn Time	8 Hours
Log Length	16" Maximum
Firebox Size	2.4 cu. ft. (Manufacturer), 1.95 cu. ft. (EPA)
Firebox Construction	Cast Iron w/ Firebrick
Clean Burn Technology	Non-Catalytic
Fan/Blower	Standard
Flue Size	6"
Distance to Flue from Surround	9-7/8" (Center)
Surround Sizes	29" H x 44" W, 29" H x 50" W
Min. Fireplace Dimensions	23-3/8" H x 28-7/8" W x 19-5/8" D
Unit Dimensions	25-1/8" H x 36-1/8" W x 23-1/8" D
Unit Weight	491 lbs.
Unique Features	30% Biomass Tax Credit Eligible
Notes	All specifications per the Manufacturer. Heating capacity and output are to be used as a guide only and cannot be accurately compared across manufacturers. Please visit our showroom to for help determining the best product for you.

Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Details

The Matrix wood insert will seduce you with an average particle emission rate as 2.3 g/h and an optimal efficiency of 79%. The latest modifications made to this box are well in tune with the industry standards required for 2020. Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.

Options
