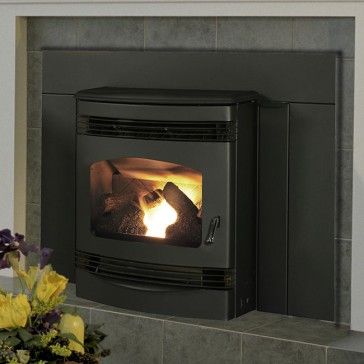

Quadra-Fire Santa Fe Pellet Insert
$3,679.00
The Santa Fe is a sleek, contemporary and eco-friendly heating option. But don’t let its size fool you—this compact unit packs some heating punch. Expect clean, durable and long-lasting performance from this advanced insert. Includes standard wall thermostat.
Availability:
In stock
SKU
SANTAFEI-C
| BTU/Hr Input | Up to 30,600 BTU/Hr |
|---|---|
| Heating Capacity | Up to 1,900 sq. ft. |
| Efficiency | LHV 70%, HHV 66% |
| Emissions | 1.1 g/hr |
| Maximum Feed Rate | 3.4 lbs/hr |
| Electronic Ignition | Standard |
| Firebox Construction | Steel |
| Burn Pot Construction | Cast Iron |
| Hopper Capacity | 45 lbs. |
| Fan/Blower | Standard |
| Flue Size | 3" |
| Venting Configuration | Top |
| Distance to Flue from Surround | 9-5/8" |
| Surround Sizes | 30" H x 40" W | 33" H x 50" W |
| Thermostat Control | Standard |
| Remote Control | Optional |
| Min. Fireplace Dimensions | 23-1/4" H x 29-1/4" (Front), 24" (Rear) W x 16" D |
| Unit Dimensions | 25-3/8" H x 21-1/2" W x 13" D |
| Unit Weight | 214 lbs. |
| Unique Features | Patented Feed System for Jam-Free Operation |
| Notes | BTU/Hr output will vary based on fuel brand used. Fuel density and pellet shape may affect hopper capacity. |
Write Your Own Review
The Santa Fe is a sleek, contemporary and eco-friendly heating option. But don’t let its size fool you—this compact unit packs some heating punch. Expect clean, durable and long-lasting performance from this advanced insert.
Features
- 30,600 BTUs — heats 700 to 1,800 square feet, based on climate and home efficiency
- EPA certified, with low emission levels of 1.1 grams per hour
- 45lb hopper capacity
- Patented feed system for jam-free operation
- Easy-clean firepot
Fronts & Doors
Black Nickel Santa Fe Insert door
Remotes & Controls
Smart-Stat Remote
Programable Thermostat
Brochure
